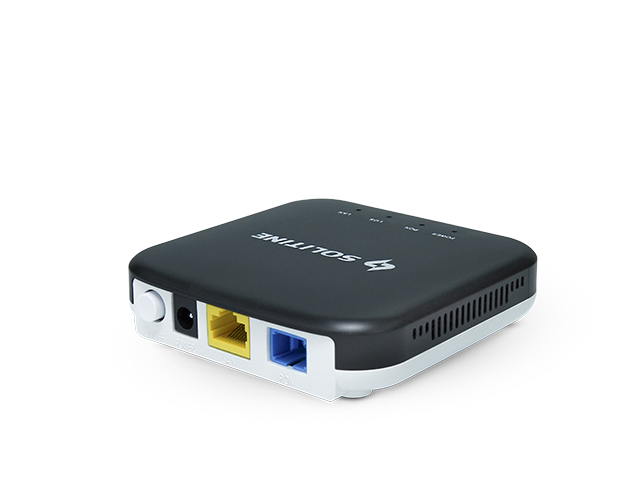

Solitine SOL-XP01 Single Port Gigabit XPON ONU

ONU In Stock

Product Highlights

4 Features
Single Gigabit Ethernet port designed for connecting external WiFi routers
Dual-mode XPON (GPON/EPON) with automatic detection
Ultra-compact size with very low power consumption
Supports TR-069 remote management and IPTV services

General

2 Specs
ONU Type Single Port Gigabit XPON ONU
Color Black

Network

4 Specs
XPON Support Yes
GPON Standard ITU-T G.984
EPON Standard IEEE 802.3 EPON MAC, RFC4837
WAN Type 802.1Q tag VLAN, support 4094 VLANs

Wireless

5 Specs
WiFi Standard N/A
WiFi Frequency N/A
WiFi Speed N/A
Antenna Quantity No
Antenna Gain No

Interface

5 Specs
LAN Port 1 × 10/100/1000 Mbps RJ45 port
LAN Port Speed 10/100/1000 Mbps
PON Port 1x SC/APC
RJ11 Port No
CATV Port No

Features

5 Specs
VoIP Support No
IPTV Support Yes (Radvd, DHCPv6, MLD Proxy, MLD Snooping)
IPv6 Support Yes
TR069 Support Yes
Mesh Support No

Optical

3 Specs
Optical Connector Single fiber WDM (SC connector, type not specified)
Optical Wavelength Tx 1310nm, Rx 1490nm
Receiving Sensitivity -28 ~ -8 dBm

Power

2 Specs
Power Supply DC12V / 1A
Power Consumption ≤ 5.5W

Physical

2 Specs
Dimensions 110 × 80 × 28 mm
Weight ≈ 140g

Hardware

4 Specs
Chipset High Performance XPON SoC
LED indicator Power, LOS, PON, LAN
Flash Memory 128MB
Button Reset Button

Warranty & Support

1 Spec
Warranty 2 Years Official Warranty
