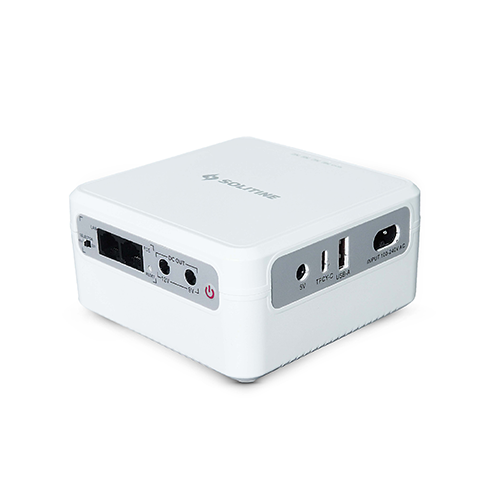

Solitine SOL-709 20000mAh Mini UPS

UPS In Stock

Product Highlights

4 Features
20000mAh high-capacity lithium battery for long backup time
36W max output with PoE 48V/51V, selectable DC 12V/9V/5V & QC USB
Supports Router, ONU, IP Camera & Networking Devices simultaneously
Intelligent protections with silent fanless operation & 1 Year Warranty

General

2 Specs
UPS Type Mini DC UPS (Lithium Battery Backup)
Color White

Power

8 Specs
Capacity 20000mAh
Rated Power 36W Max
Input Voltage AC 100-240V, 50Hz, 0.4A (Max)
Output Voltage DC Selectable: 12V / 9V / 5V | USB: 5V | PoE: 48V / 51V
Output Frequency 50Hz (Pass-through)
Waveform Type Pure DC Output (for DC devices)
Transfer Time Instantaneous (0 ms – Seamless switch)
Efficiency High efficiency (not officially specified, typical >85%)

Battery

5 Specs
Battery Type Built-in High-quality Lithium-ion (21700 cells)
Battery Capacity 20000mAh
Battery Quantity Integrated (non-removable)
Backup Time 8–24 hours (depends on load — e.g., ~20-24 hrs for typical router + ONU ~10-15W)
Battery Voltage Internal ~3.7V nominal (system output converted)

Interface

7 Specs
AC Output Port None (DC UPS)
DC Output Port Selectable 12V/9V/5V DC ports
USB Port Yes (5V with QC 2.0 / QC 3.0 support)
PoE Output Yes (48V / 51V)
Connector Type DC ports + PoE RJ45 + USB
LED Indicator Yes (Multi-color LED for Power, Charging & Battery Status)
Power Button Yes

Protection

5 Specs
Overload Protection Yes
Short Circuit Protection Yes
Overcharge Protection Yes
Surge Protection Yes
Overheat Protection Yes (Intelligent protection circuit)

Features

5 Specs
Auto Restart Yes
Cold Start Yes
AVR Support Not applicable (DC UPS)
Silent Mode Yes (Fanless silent operation)
Smart Charging Yes (Simultaneous charge & discharge + QC fast charging)

Physical

3 Specs
Dimensions 180 × 118 × 60 mm
Weight ~800–950g (approx.)
Material ABS Plastic

Warranty & Support

1 Spec
Warranty 1 Year Official Warranty
