Name: SOLITINE Model: SOL1008-DP
SKU: 5360
Availability: InStock

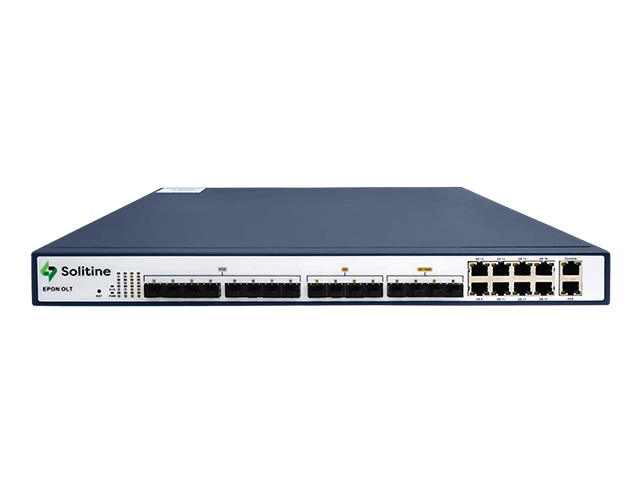

SOLITINE Model: SOL1008-DP

$612.00

SOLITINE SOL1008-DP is a high-performance EPON OLT designed for scalable fiber network deployment. It supports up to 512 ONUs with a 1:64 split ratio per PON port and features 8 GE RJ45, 4 × 1GE SFP, and 4 × 10GE SFP+ uplink ports. With 20KM transmission distance, redundant power supply, advanced Layer 2/Layer 3 functions, and flexible management via SNMP, Telnet, CLI, WEB, and SSH, it is ideal for ISP and enterprise optical network applications.

🌐 Supports 512 ONUs

⚡ 8GE + 4SFP + 4SFP+

🔌 20KM EPON Transmission

🛠️ Advanced Network Management

Description

SOL1008-DP Technical Specifications
Brand	SOLITINE
Model	SOL1008-DP
ONU Capacity	Supports up to 512 ONUs
Splitting Ratio	1:64 per PON Port
Uplink Interfaces	8 GE (RJ45), 4 × 1GE SFP, 4 × 10GE (SFP+)
PON Port Type	PON SFP Slots with PX20++
Power Supply	2 × Redundant Power Supply
AC Input	100~240V; 47/63Hz
Management Ports	1 × 10/100BASE-T Out-band AUX Port, 1 × Console Port
Transmission Distance	20KM
EPON Port Speed	Symmetrical 1.25Gbps
Wavelength	TX 1490nm, RX 1310nm
Connector	SC/UPC
Fiber Type	9/125μm SMF
TX Power	+4.5dBm ~ +9dBm
Rx Sensitivity	-32dBm
Saturation Optical Power	-8dBm
Management Mode	SNMP / Telnet / CLI / WEB / SSH v2
Management Function	Fan Group Control, Port Status Monitoring, Configuration Management, Online ONU Configuration and Management, User Management, Alarm Management
Layer 2 Feature	16K MAC Address, Port VLAN, Protocol VLAN, 4096 VLANs, VLAN Tag/Un-tag, VLAN Transparent Transmission, QinQ, IEEE802.3d Trunk, RSTP, MSTP, QoS Based on Port/VID/TOS/MAC, IEEE802.x Flow Control
Multicast	IGMP Snooping, 256 IP Multicast Groups
DHCP Functions	DHCP Server, DHCP Relay, DHCP Snooping
Layer 3 Features	ARP Proxy, Static Route, 1024 Hardware Host Routes, 512 Hardware Subnet Routes, Support RIPv1/v2, OSPFv2/v3, PPPoE/PPPoE+
Security & Access Management	Supports SNMP, Telnet, HTTPS, SSH Login Access, IEEE802.12x, VLAN, Radius, TACACS+, HTTPS, and SSH V2.0
