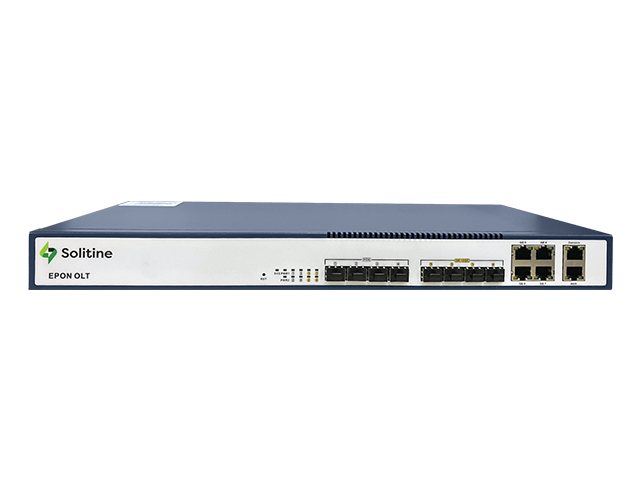

SOLITINE Model: SOL1004-DP

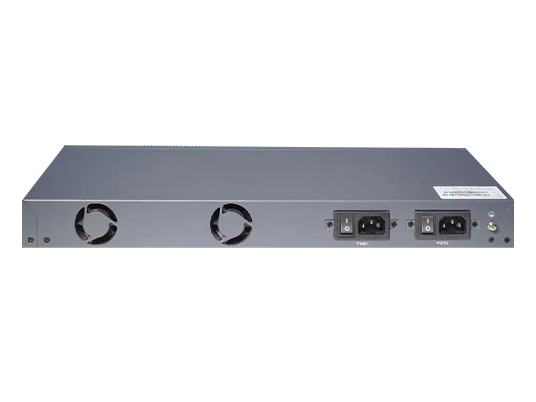

SOLITINE Model: SOL1004-DP - Image 2

SOLITINE Model: SOL1004-DP

$330.00

SOLITINE SOL1004-DP is a powerful 4-port EPON OLT designed for scalable and efficient fiber network deployment. It offers 4GE RJ45 uplink ports, 4 × 1GE/10GE SFP uplink slots, and supports up to 256 ONUs with 64 ONUs per PON port. With 20KM transmission distance, advanced Layer 2/Layer 3 features, DHCP, multicast, VLAN, and flexible management via SNMP, CLI, WEB, Telnet, and SSH, it is ideal for ISP and enterprise optical access networks.

🌐 4-Port EPON OLT
⚡ Up to 256 ONU Support
🔌 4GE + 4 SFP Uplink
🛠️ Advanced Network Management
Categories: ,

Description

SOL1004-DP Technical Specifications
Brand SOLITINE
Model SOL1004-DP
Uplink Interfaces 4GE (Copper) RJ45 + 4 × 1GE / 10GE SFP Slots
Downlink Ports 4 × EPON OLT Ports
ONU Capacity Supports up to 256 ONUs (64 ONUs per PON Port)
Management Ports 1 × 10/100BASE-T Out-band AUX Port, 1 × Console Port
Transmission Distance 20KM
EPON Port Speed Symmetrical 1.25Gbps
Wavelength TX 1490nm, RX 1310nm
Connector SC/UPC
Fiber Type 9/125μm SMF
TX Power +4.5dBm ~ +9dBm
Rx Sensitivity -32dBm
Saturation Optical Power -8dBm
Management Mode SNMP / Telnet / CLI / WEB / SSH v2
Management Functions Fan group control, port status monitoring, configuration management, online ONU management, user management, alarm management
Layer 2 Features 16K MAC address, Port VLAN, Protocol VLAN, 4096 VLANs, VLAN Tag/Un-tag, VLAN transparent transmission, QinQ, IEEE802.3d trunk, RSTP, MSTP, QoS based on port/VID/TOS/MAC, IEEE802.x flow control
Multicast IGMP Snooping, 256 IP Multicast Groups
DHCP Functions DHCP Server, DHCP Relay, DHCP Snooping
Layer 3 Features ARP Proxy, Static Route, 1024 Hardware Host Routes, 512 Hardware Subnet Routes, RIPv1/v2, OSPFv2/v3, PPPoE/PPPoE+
