Name: Solitine SOL-XP01 Single Port Gigabit XPON ONU
SKU: 5375
Availability: InStock

Solitine SOL-XP01 Single Port Gigabit XPON ONU

$6.94

Solitine SOL-XP01 Single Port Gigabit XPON ONU is a compact and reliable fiber access device built for fast internet connectivity in FTTH environments. It features 1 × Gigabit RJ45 LAN port, 1 × SC/UPC fiber port, and supports XPON standard with 2.5Gbps downstream and 1.25Gbps upstream. With support for PPPoE, Dynamic IP, Static IP, IPv4/IPv6, VLAN, firewall features, and easy LED status monitoring, it offers secure, flexible, and stable performance for home internet and IPTV services.

🌐 1GE Gigabit LAN Port

⚡ XPON 2.5G Down / 1.25G Up

🔌 SC/UPC Fiber Interface

🛡️ IPv4 / IPv6 + Firewall

Description

SOL-XP01 Technical Specifications
Brand	Solitine
Model	SOL-XP01
Product Type	Single Port Gigabit XPON ONU
Certifications	CE, RoHS
Compliance Standards	IEEE 802.3 EPON MAC, RFC4837, ITU-T G.984.x
Power Supply	DC 12V / 1A
PON Standard	XPON
Optical Interface	Single Fiber WDM (SC Connector)
Fiber Port	1 × SC/UPC
LAN Port	1 × 10/100/1000 Mbps RJ45 Port
Data Rates	Upstream 1.25Gbps, Downstream 2.5Gbps
Optical Mod	Class B+
Transmission Distance	Max 20 km
PON TX Power	1~5dBm (1310nm)
PON RX Sensitivity	< -28dBm (1490nm)
Operating Temperature / Humidity	10°C~50°C Operating, 10%~90% Non-condensing
Storage Temperature	40°C~70°C
Applications	FTTH Deployments, Triple-Play Services, Internet, IPTV
WAN Connection	PPPoE, Dynamic IP, Static IP, Bridge
DHCP Features	Server, Client, DHCP Client List, Address Reservation, DHCP Relay
Diagnostics	Ping, Ping6, Tracert, Tracert6
Firewall	ALG, IP Filter, Port Filter, Mac Filter, URL Filter, Port Forwarding, DMZ
IP Version	IPv4, IPv6
IPv6 Features	Radvd, DHCPv6, MLD Proxy, MLD Snooping
Services	DHCP, Dynamic DNS
VLAN	802.1Q Tag VLAN, Supports 4094 VLANs
Cooling Mechanism	Passive (Ventilated Design)

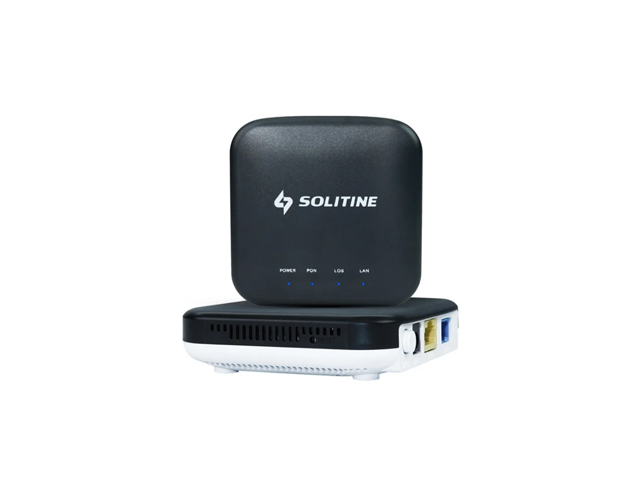

LED Indicators	Power, LOS, PON, LAN

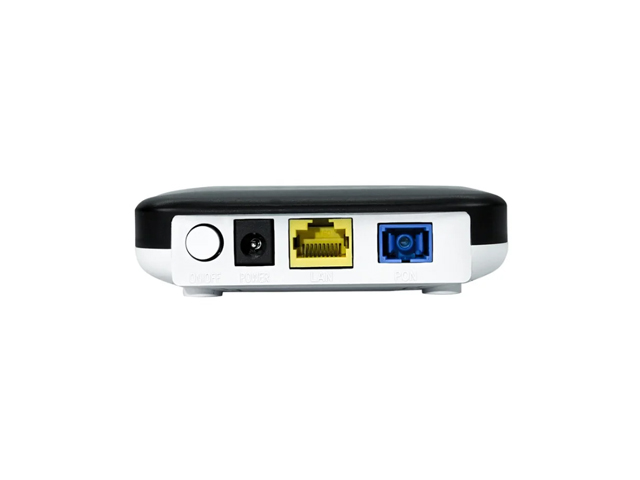

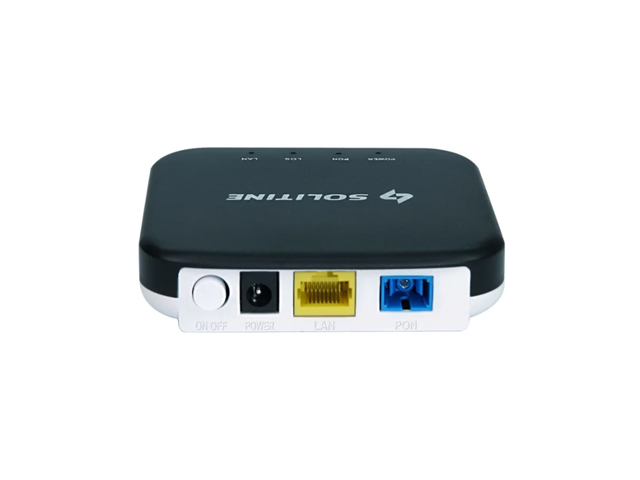

Port Arrangement	Rear: Reset / Power Button, Power Jack, RJ45, PON Port
Included Items	ONU, Power Adapter, User Manual
Documentation	Documentation Included
Software Update Policy	Yes
Technical Support	Official
Warranty	2 Years Official Warranty
