Name: SOLITINE UTP CAT6 Solid Cable
SKU: 5399
Availability: InStock

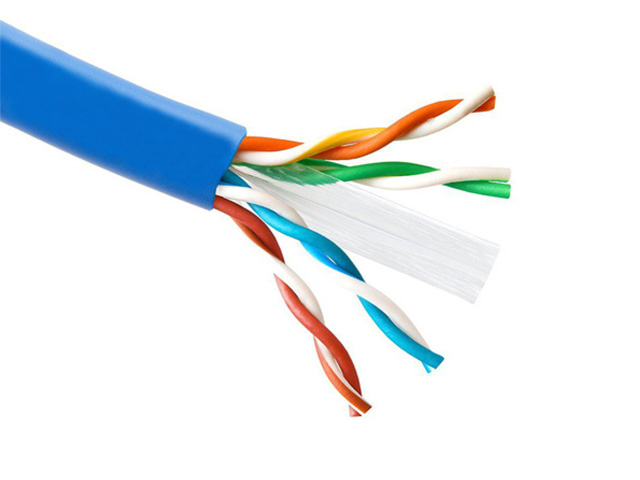

SOLITINE UTP CAT6 Solid Cable

$1.00

SOLITINE UTP CAT6 Solid Cable is a high-performance 4-pair network cable built with a 23AWG solid bare copper conductor, PE insulation, and a FR PVC / LSZH jacket. It supports a 250 MHz frequency rating and 155 Mbps data transmission, and is RoHS compliant. Meeting international standards including ISO/IEC-1180, TIA/EIA-568B.2, and CE, it is ideal for ISDN, Fast Ethernet, Gigabit Ethernet, ATM, Token Ring, and other LAN network applications.

🔌 23AWG Solid Bare Copper

⚡ 250 MHz / 155 Mbps

🧯 FR PVC / LSZH Jacket

✅ RoHS & ISO/IEC Compliant

Description

SOLITINE UTP CAT6 Solid Cable Technical Specifications
Brand	SOLITINE
Product Type	UTP CAT6 Solid Cable
Cable Category	CAT6
Conductor	23AWG Solid Bare Copper Conductor
Insulation	PE Insulation
Pair Configuration	4 Pair
Jacket Material	FR PVC / LSZH
RoHS Compliance	RoHS Compliant
Frequency	250 MHz
Transmission Speed	155 Mbps
Industrial Standards	International ISO/IEC-1180, USA ANSI/ANATEL, TIA/EIA-568B.2-2001, UI, CE Approved
Linear Resistance	Max. 186.5 Ω/km
Mutual Capacity (Nom.)	Max. 5200pF/100m
Unbalance Capacity Max	1500pF/1km (p/p at 1kHz)
Characteristic Impedance	100 ± 15 Ω
Velocity of Propagation	72% of C (f > 1MHz)
Applications	ISDN, 10Base-T (IEEE802.3), 100Base-T (IEEE802.3u), ATM 155Mbps, 100VG-AnyLAN (IEEE802.12), Token Ring (IEEE802.5), TP-PMD (ANSI X3T9.5)
