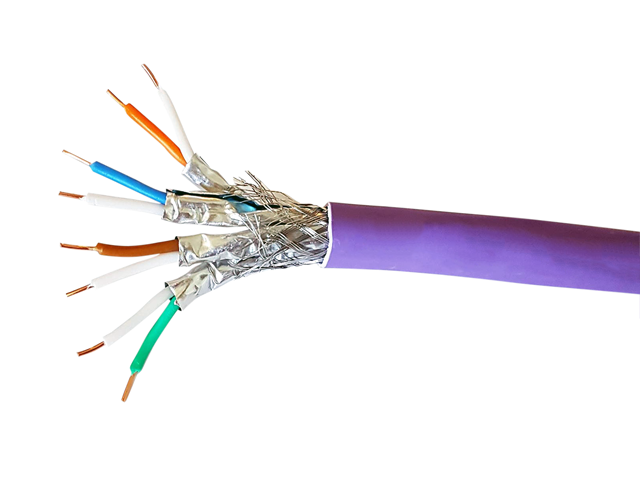

SOLITINE SFTP CAT6 Solid Cable LSZH

$1.00

SOLITINE SFTP CAT6 Solid Cable LSZH is a high-performance shielded CAT6 data communication cable designed for voice, data, video, and security applications. It features 23AWG solid bare copper conductors, S/FTP shielding, and a FR PVC / LSZH jacket for reliable indoor installations. With 250MHz frequency support, compliance with major international standards, and strong shielding performance, it is ideal for home, office, and campus network deployments.

🔌 23AWG Solid Bare Copper
🛡️ S/FTP Shielded Design
⚡ 250MHz Performance
🏢 Indoor LSZH Jacket
Category:

Description



SOLITINE SFTP CAT6 Solid Cable LSZH Technical Specifications
Brand SOLITINE
Product Type S/FTP CAT6 Solid Cable LSZH
Cable Category CAT6 Shielded (S/FTP)
Conductor 23AWG Solid Bare Copper Conductor
Insulation PE Insulation
Pair Configuration 4 Pair
Jacket Material FR PVC / LSZH Jacket
RoHS Compliance RoHS Compliant
Separation Foil Synthetical Separation Foil: Polyester
Shielding 110% Coverage Aluminum/Polyester + 40% Coverage Tinned Copper Braiding
Drain Wire Included
Frequency 250MHz
Transmission 155Mbps
Industrial Standards International ISO/IEC-1180, USA ANSI/ANATEL, TIA/EIA-568B.2-2001, UI, CE Approved
Applications ISDN, 10Base-T (IEEE802.3), 100Base-T (IEEE802.3u), ATM 155Mbps, 100VG-AnyLAN (IEEE802.12), Token Ring (IEEE802.5), TP-PMD (ANSI X3T9.5)
Linear Resistance Max. 95 Ω/km
Mutual Capacity (Nom.) Max. 5200pF/100m
Unbalance Capacity Max 1500pF/1km (p/p at 1kHz)
Characteristic Impedance 100 ± 15 Ω
Velocity of Propagation 72% of C (f > 1MHz)
Installation Type Indoor Network Installation
Packaging Sold and Shipped in 1000ft Increments on Wooden Spool

Data Sheet

📄 SOL-6357-V-SF


⬇ Download PDF
