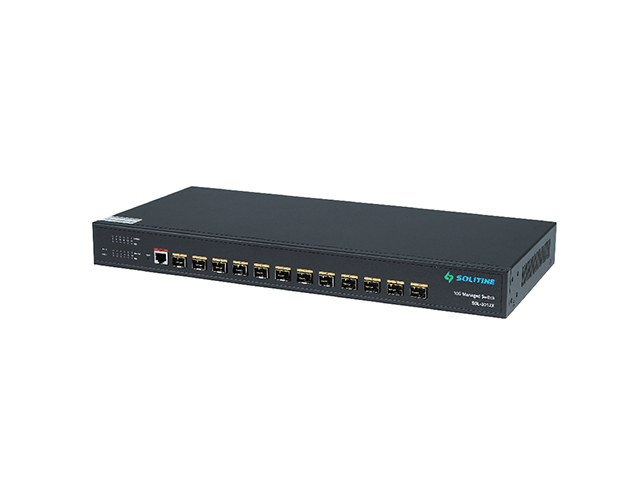

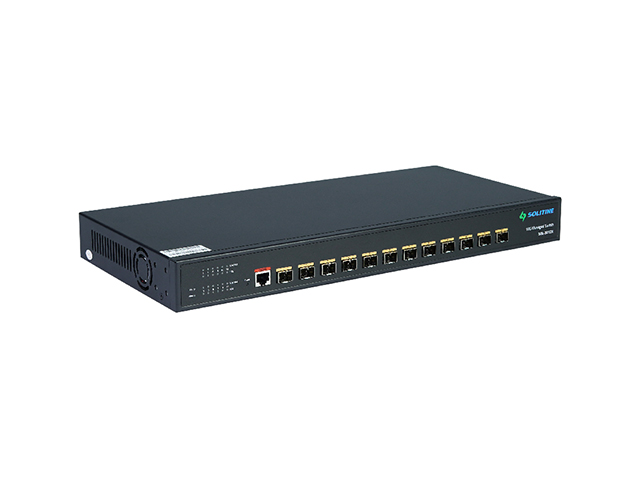

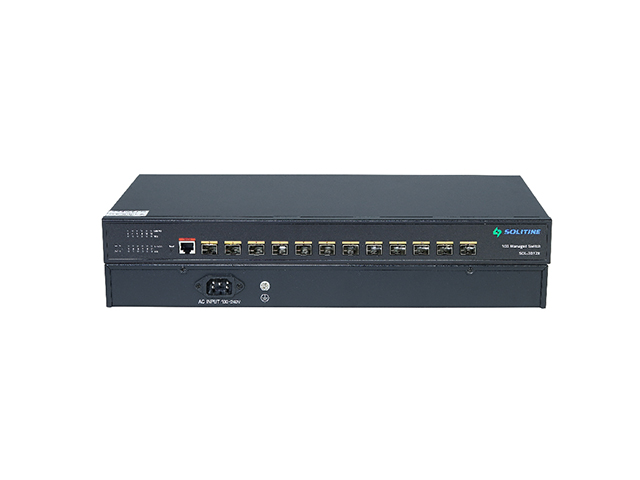

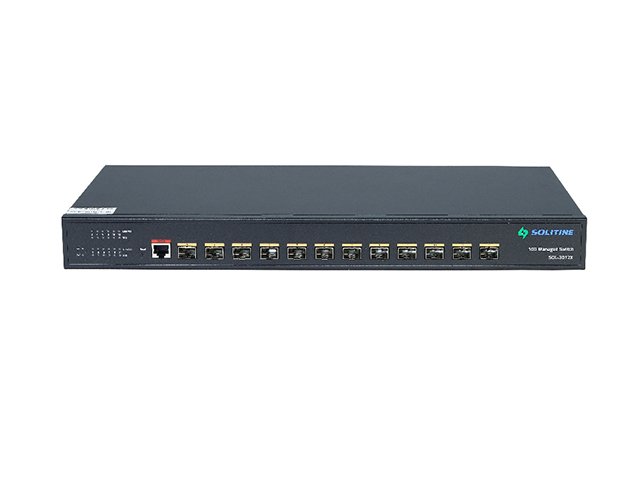

Solitine SOL-3012X 12-Port 10G SPF+ Managed Switch

$220.15

Solitine SOL-3012X 12-Port 10G SFP+ Managed Switch is a high-performance Layer 3 switch built for enterprise networks, data centers, and ISP backbone deployments. It features 12 × 1G/2.5G/10Gbps SFP+ ports, a 240Gbps switching capacity, and a 178.56 Mpps forwarding rate. With support for IPv4/IPv6 routing, OSPFv2, RIPv1/v2, VLAN (up to 4094), STP/RSTP/MSTP, LACP, 802.1X authentication, and DDM fiber module monitoring, it delivers advanced network management and high reliability for scalable and complex network environments.

🌐 12 × 10G SFP+ Ports
⚡ 240Gbps Switching Capacity
🧠 L3 IPv4 / IPv6 Routing
🛡️ ESD + VLAN + 802.1X Security
Category:

Description

SOL-3012X Technical Specifications
Brand Solitine
Model SOL-3012X
Product Type 12-Port 10G SFP+ L3 Managed Switch
SFP+ Ports 12 × 1G / 2.5G / 10Gbps SFP+ Ports
Console Port 1 × Console Port
Power Supply AC 100-240V 50/60Hz, DC 12V 8A
Switching Capacity 240Gbps
Forwarding Rate 178.56 Mpps
MAC Address Table 32K
Packet Buffer Size 16Mbit
Jumbo Frame Support Up to 12K
VLAN Support VLAN Range 1-4094, Maximum Active VLAN 4K, MAC VLAN, Protocol VLAN, 802.1Q VLAN Tag
Layer 3 Routing IPv4 / IPv6 Routing, Static Routes, RIP v1/v2, OSPFv2, ARP, IPv6 ND
Supported Standards IEEE 802.3u, 802.3ab, 802.3z, 802.3ae, 802.3x, 802.3az, 802.3ad, 802.1AB, 802.1D, 802.1w, 802.1s, 802.1Q, 802.1p, 802.1X
Spanning Tree STP (802.1D), RSTP (802.1w), MSTP (802.1s)
Link Aggregation IEEE 802.3ad (LACP)
User Authentication IEEE 802.1X
ESD / Surge Protection Air 8KV, Contact 6KV (Class B)
Fiber Module DDM (Digital Diagnostic Monitoring)
Operating Temperature 0°C ~ 40°C
Storage Temperature -40°C ~ 70°C
Storage Humidity 5% ~ 95%, Non-condensing

Data Sheet

📄 SOL-3012X


⬇ Download PDF
